Built to carry heavier loads and finished to withstand tougher working conditions.
Intended for industrial plants, forklifts, car loading and persons use.
Just select the load you require up to 4000Kg !

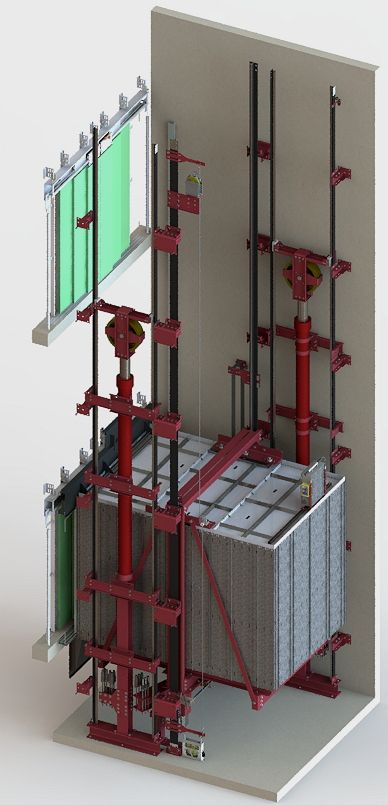

TITAN
Lista de servicios
-
General SpecsElemento de lista 1
Max load Q = 4000 Kg
Max Speed 0,63 m/s
Min Pit 1350 without Anti-drift system
Min Pit with Anti-drift system: ask your sales agent
Min Headroom 3100mm with cabin 2240 external height
-
Anti-drift systemElemento de lista 2
Anti-drift system with mechanical wedges (Optional)
-
DoorsElemento de lista 3
Choose between Wittur Pegasus Supra and Meiller Heavy Duty doors
Meiller Heavy Duty models:
Side opening three panel TTS/K 31 HD S/K 3 R/L HD
CDW = 700 - 2500 mm
CDH = 2000 - 4500 mm
Centre opening four panel TTS/K 28 HD S/K 4 Z HD
CDW = 1200 - 3200 mm
CDH = 2000 - 4500 mm
Centre opening six panel TTS/K 32 HD S/K 6 Z HD
CDW = 1800 - 4000 mm
CDH = 2000 - 4500 mm
-
Electrical SpecsElemento de lista 4
ZenONE-H with Thor control for hydraulic heavy duty lifts
